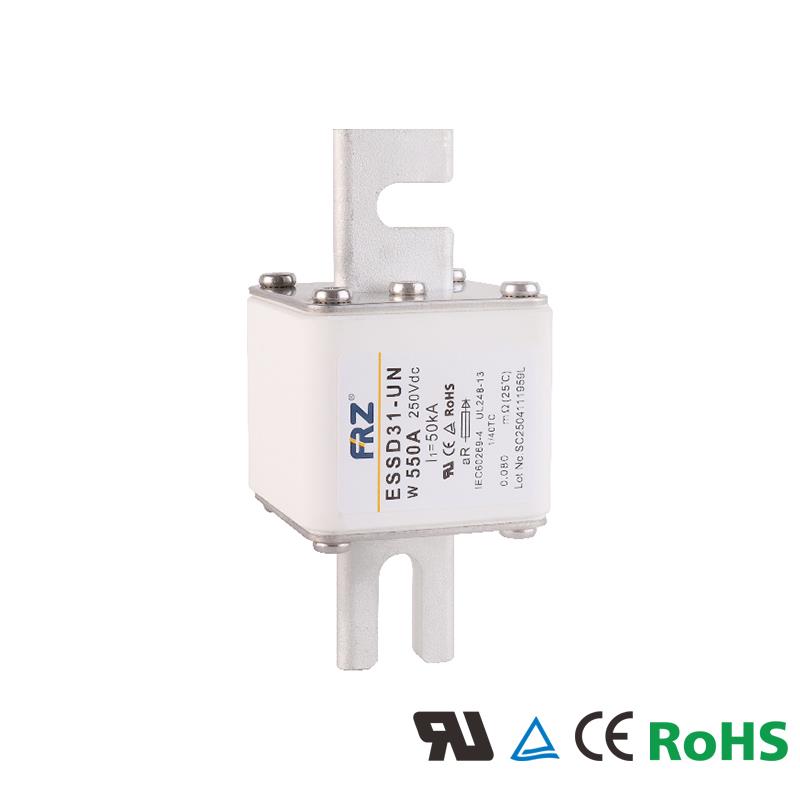

ESSD31-UN DC Fuse for Battery Pack Protection

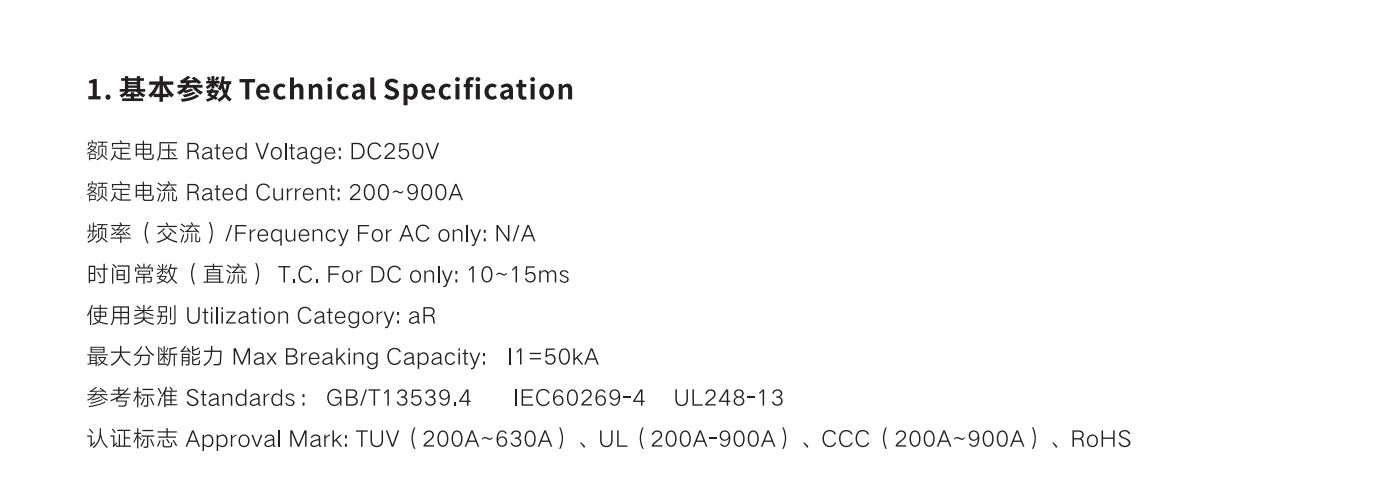

Rated Voltage: DC250V
Rated Current: 200A~630A
T.C. For DC only: 10~15ms
Utilization Category: aR
Max Breaking Capacity: I1=50kA
Standards: GB/T13539.4 IEC60269-4 UL248-13
Approval Mark: TUV(200A~630A), UL(200A~900A), CCC(200A~900A), RoHS
